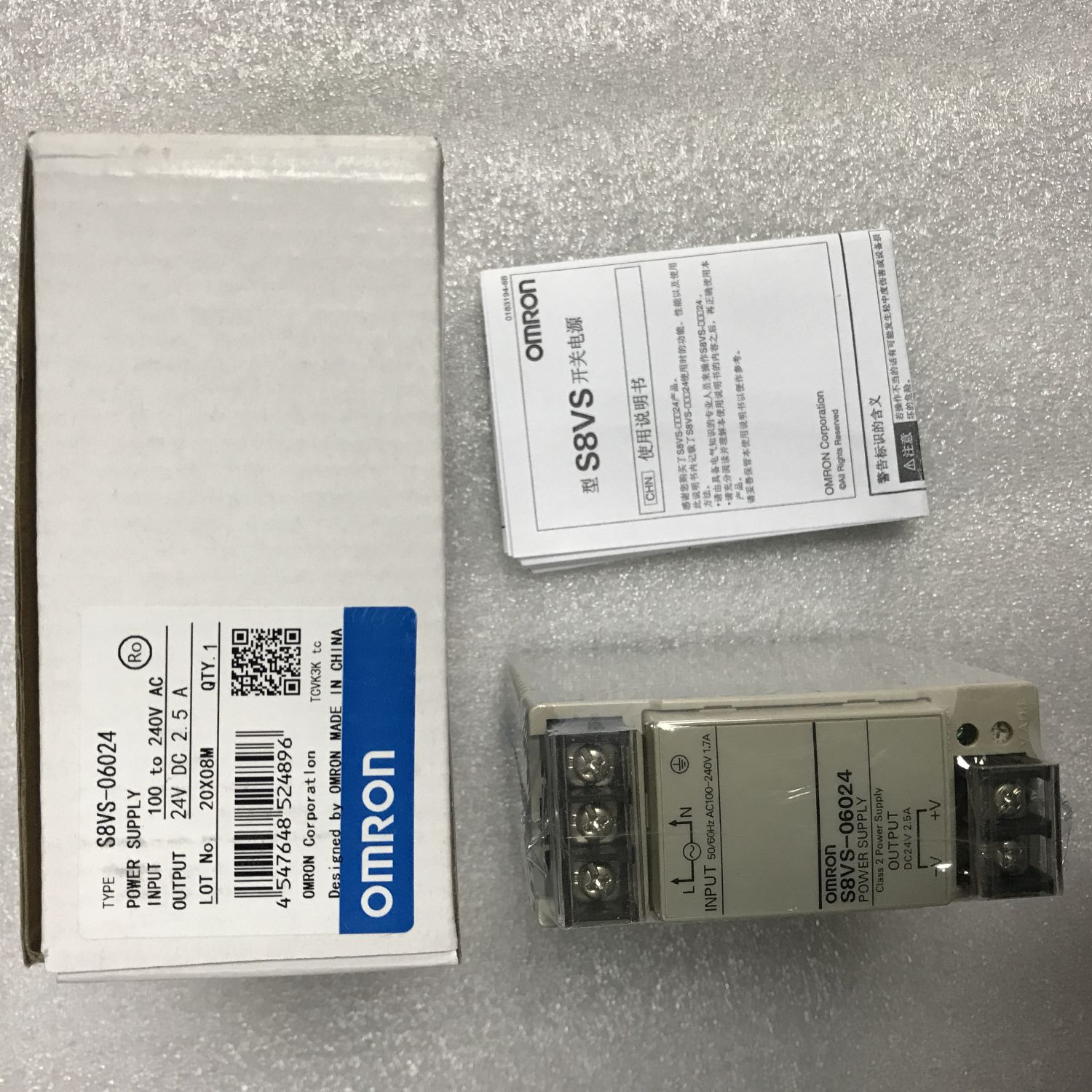

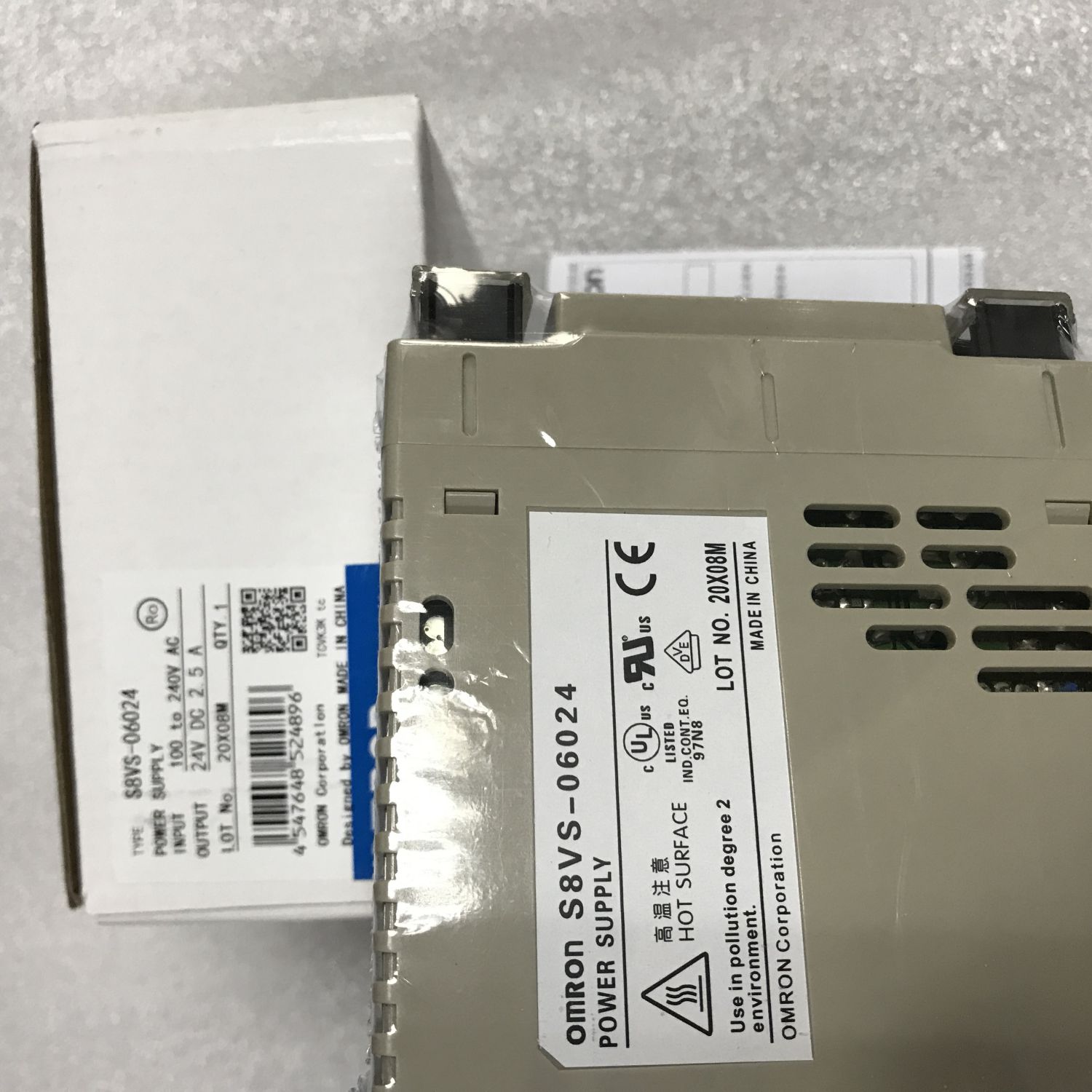

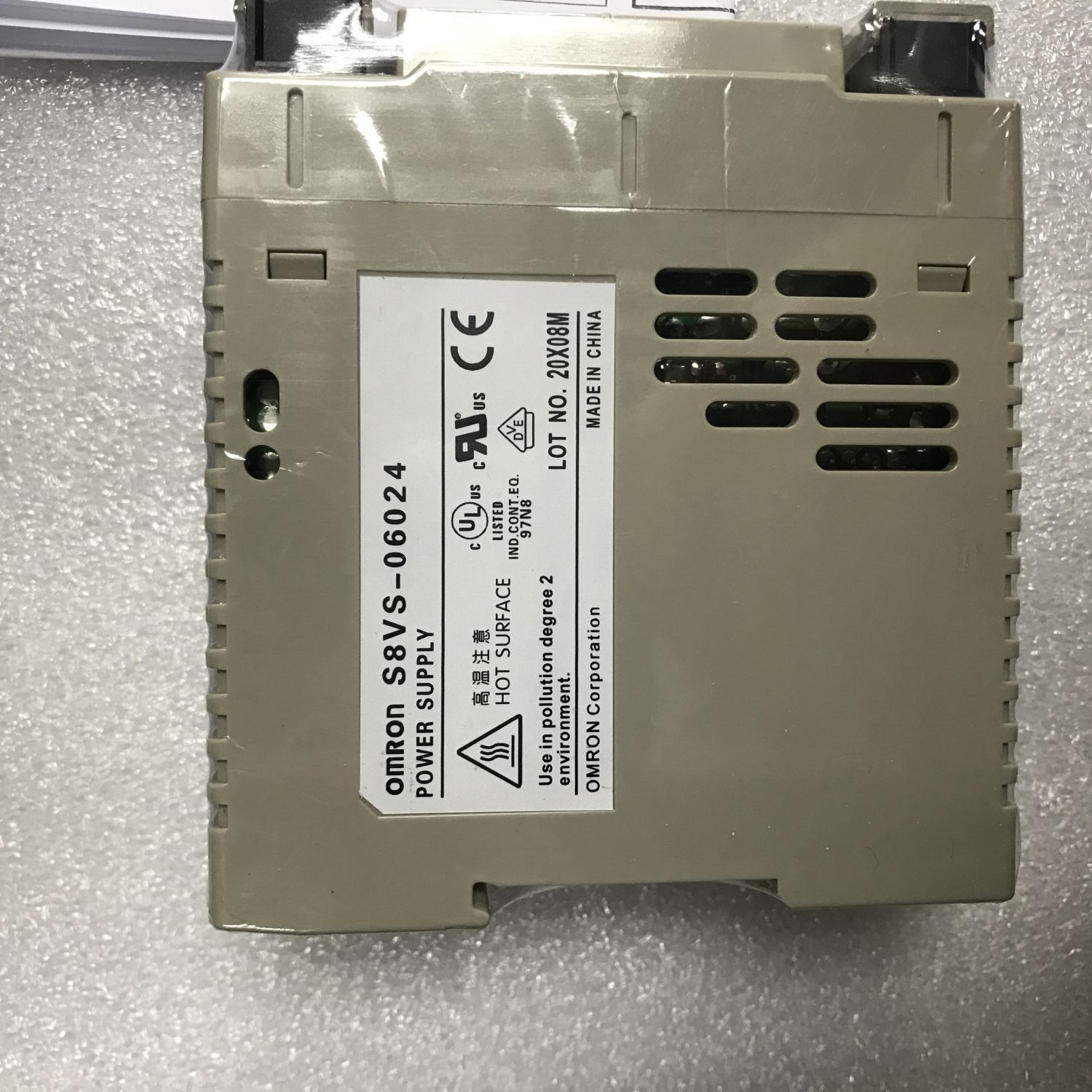

S8VS-06024 Omron power supply
| Power rating | 60 W | |
|---|---|---|
| Output voltage | 24 V | |
| Efficiency | 84% typ. (at 100 VAC input) 83% typ. (at 200 VAC input) |
|
| Input | Rated input voltage | 100 to 240 VAC |
| Allowable input voltage variable range | 85 to 264 VAC 80 to 370 VDC |
|
| Frequency | 50/60Hz (47 to 450 Hz) | |
| Rated input curren | 1.7 A max., 1.3 A typ. (at 100 VAC input) 1.0 A max., 0.68 A typ. (at 200 VAC input) |
|
| Leakage current | 0.5 mA max. (at 100 VAC input) 1.0 mA max. (at 200 VAC input) |
|
| Inrush current | 17.5 A max., 14 A typ. (at 100 VAC input) 35 A max., 28 A typ. (at 200 VAC input) |
|
| Output | Rated output current | 2.5 A |
| Output voltage variable range | -10 to +15% With V.ADJ | |
| Ripple | 70 mV max. at rated input and output | |
| Static input variation influence | 0.5% max. at 85 to 264 VAC input, 100% load | |
| Static load variation influence | 1.5% max. (rated input, 0 to 100% load) | |
| Ambient temperature variation influence | 0.05%/℃ max. | |
| Start up time | 620 ms typ. (at 100 VAC input) 400 ms typ. (at 200 VAC input) |
|
| Hold time | 34 ms typ. (at 100 VAC input) 158 ms typ. (at 200 VAC input) |
|
| Additional functions | Overload protection | Yes, Automatic reset |
| Overvoltage protection | Yes, Shut off the input voltage and turn on the input again | |
| Series operation | Yes (Up to 2 Power Supplies with external diode) | |
| Parallel operation | No (However, backup operation is possible, external diodes required.) | |
| Output indicator | Yes (color: green) | |
| Output voltage indication | No | |
| Output current indication | No | |
| Peak-hold current indication | No | |
| Maintenance forecast monitor | output: No | |
| Total run time monitor | output: No indication: No |
|
| Undervoltage alarm | output: No indication: No |
|
| Insulation | Dielectric strength | Between all input terminals and PE terminals: 2 kVAC for 1 min, Detection current: 20 mA Between all input terminals and all output terminals/alarm outputs: 3 kVAC for 1 min, Detection current: 20 mA Between all output terminals/alarm outputs and all PE terminals: 1 kVAC for 1 min, Detection current: 30 mA Between all output terminals and all alarm outputs: 500 VAC for 1 min, Detection current: 20 mA |
| Insulation resistance | Between all output terminals/alarm outputs and all input terminals/PE terminals: 100 MΩ min., at 500 VDC | |
| Environment | Vibration resistance | 10 to 55 Hz, 0.375 mm single amplitude in each 3 directions for 2 hours |
| Shock resistance | 150 m/s**2, in each 6 directions 3 times | |
| Ambient temperature (Operating) | -10 to 60℃ | |
| Ambient temperature (Storage) | -25 to 65℃ | |
| Ambient humidity (Operating) | 25 to 85% | |
| Ambient humidity (Storage) | 25 to 90% | |
| Reliability | Life expectancy | 10 years (at rated input, a load rate of 50% load, under the temperature of 40 ℃, standard mounting) |
| Construction | Construction | Covered type |
| Connection | Terminal blocks | |
| Terminal type | Screw terminal | |
| Mounting | DIN track mounting | |
| Attachment | Terminal block cover | |
| Weight (Main) | Approx. 330 g | |
