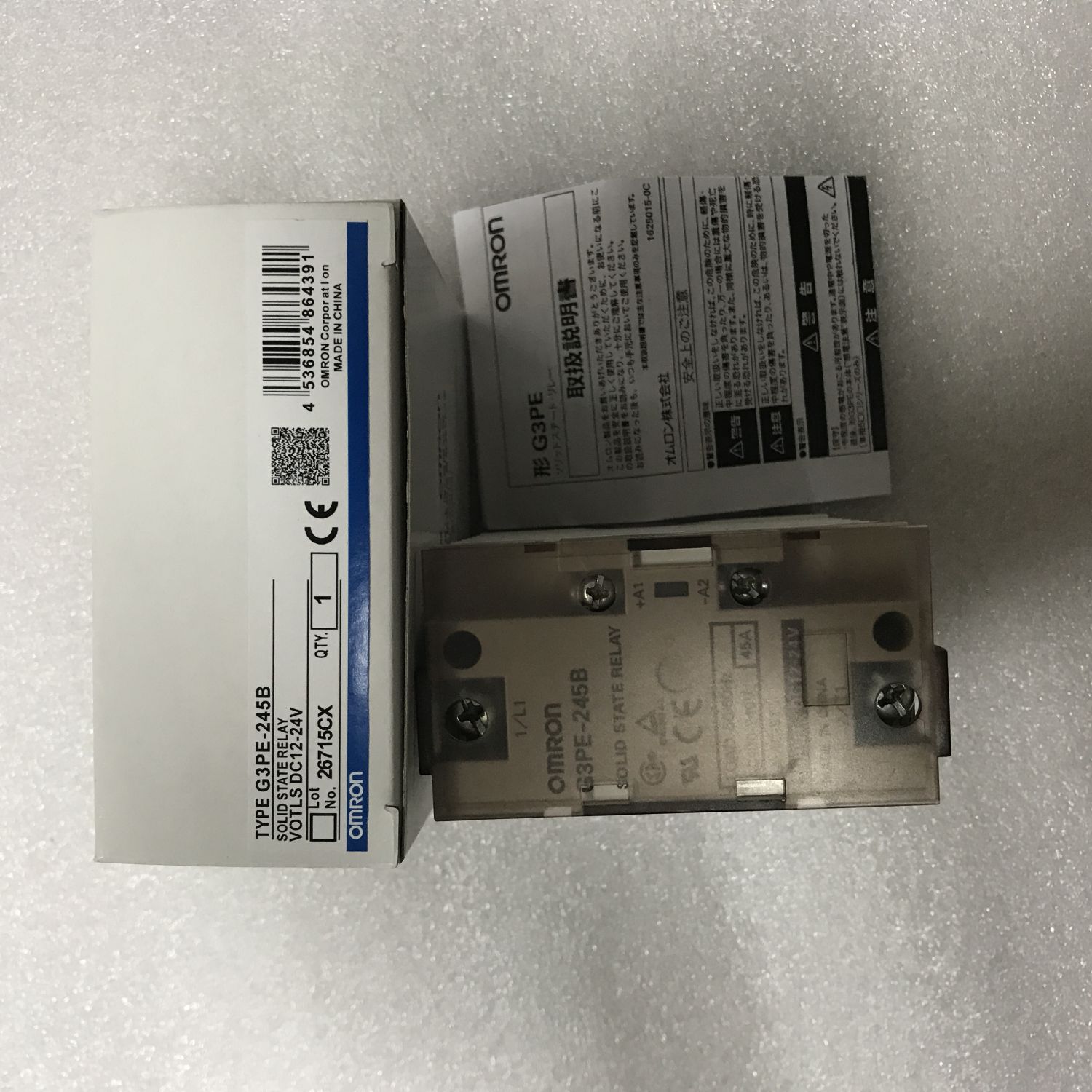

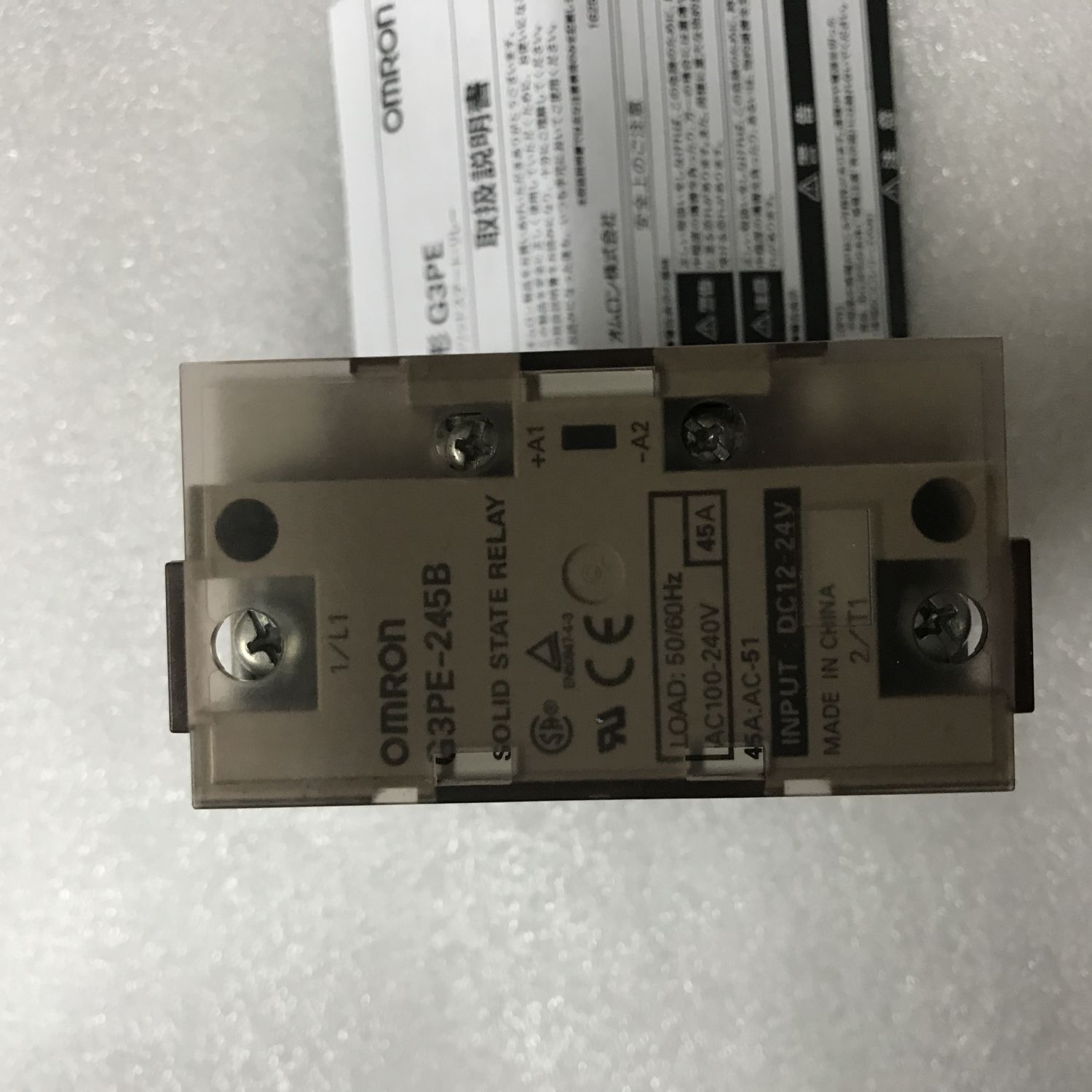

G3PE-245B Omron Solid State Relay
| Product classification | Solid State Relay for heater control |
|---|---|
| Operating rated voltage | 12 to 24 VDC |
| Operating voltage range | 9.6 to 30 VDC |
| Must operate voltage | 9.6 VDC max. |
| Must release voltage | 1 VDC min. |
| Isolation method | Phototriac |
| Rated load voltage | 100 to 240 VAC 50/60 Hz |
| Load voltage range | 75 to 264 VAC 50/60 Hz |
| Load current | 0.5 A to 45 A at 25 ℃ |
| Inrush current resistivity | 440 A (60 Hz, 1 cycle) 440 A (60 Hz, 1 cycle) |
| Output ON voltage drop | 1.6 V (RMS) |
| Leakage current | 10 mA (at 200 VAC) |
| Ambient temperature | Operating: -30 to 80 ℃ Storage: -30 to 100 ℃ (with no icing or condensation) |
| Ambient humidity | Operating: 45 to 85%RH (with no icing or condensation) |
| Operate time | 1/2 cycle of load power source + 1 ms max. |
| Release time | 1/2 cycle of load power source + 1 ms max. |
| Zero cross function | Equipped |
| Indicator | Input indicator (INPUT (Yellow): Operating) |
| Insulation resistance | 100 MΩ (at 500 VDC) |
| Dielectric strength | 2500 V 50/60 Hz 1 min |
| Vibration resistance | 10 to 55 to 10 Hz, 0.375-mm single amplitude (0.75-mm double amplitude) (mounted on DIN track) |
| Shock resistance | 294 m/s**2 (DIN Track mounting) |
| Terminal structure | Screw terminal |
| Mounting | Screw mounting / DIN track |
| Weight | Approx. 400 g |
