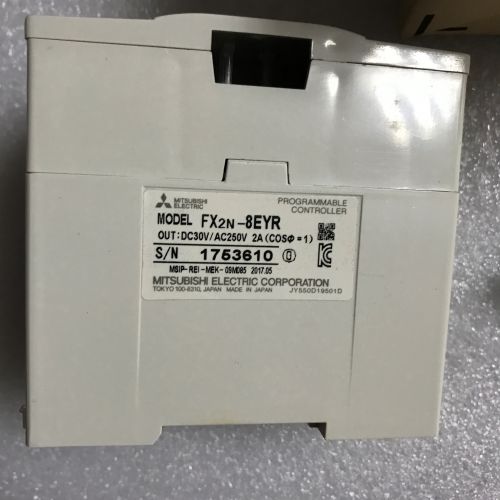

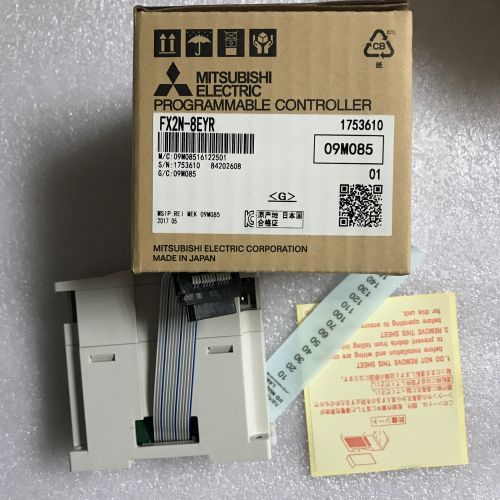

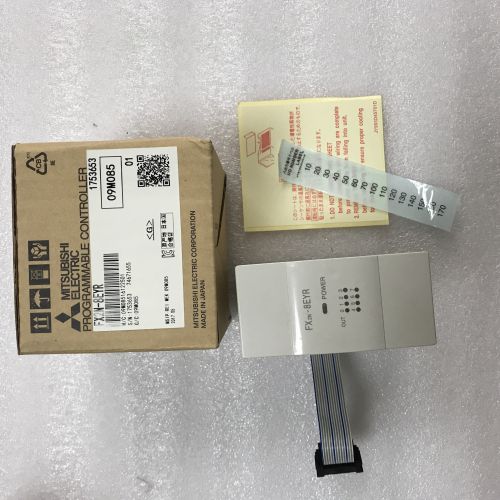

FX2N-8EYR Mitsubishi PLC
| Applicable sequencer | FX1N, FX3G, FX2N, FX3U, FX1NC, FX3GC, FX2NC, FX3UC <Connecting to connector type sequencer> FX2NC-CNV-IF is required to connect to FX1NC and FX2NC. FX2NC-CNV-IF or FX3UC-1PS-5V is required for connection to FX3GC and FX3UC. |
|
| mass | 0.2kg | |
| Power supply specifications | ||
| Rated voltage | Internal power supply from sequencer | |
| Output specifications | ||
| Number of output points | 8 points | |
| Output connection shape | Vertical terminal block (M3 screw) | |
| Output type / format | relay | |
| External power supply | AC250V DC30V or less | |
| Maximum load | Resistive load | The total load current of resistance load per 2A / point common should be as follows. ・ Output 4 points / common: 8 A or less ・ Output 8 points / common: 8 A or less |
| Inductive load | 80VA | |
| Minimum load | DC5V 2mA (reference value) | |
| Response time | OFF → ON | About 10ms |
| ON → OFF | About 10ms | |
| Circuit insulation | Mechanical insulation | |
| Output operation display | LED lighting on panel when relay coil is energized | |
