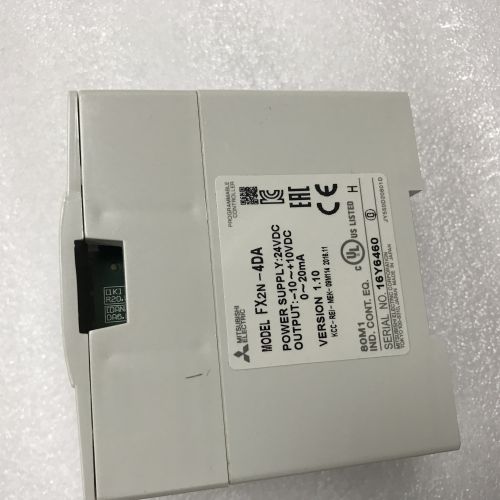

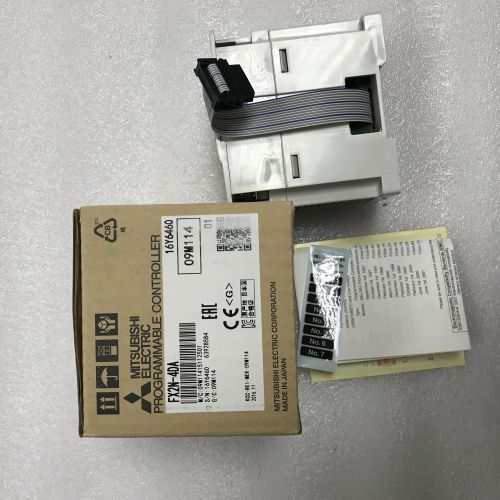

FX2N-4DA Mitsubishi PLC
| Analog output | Analog output range | Voltage output | DC-10V ~ +10V (external load resistance 2kΩ ~ 1MΩ) | |||||||
| Current output | DC 0mA to +20mA (external load resistance 500Ω or less) | |||||||||
| Number of output channels | 4 channels | |||||||||
| Output characteristics | The output mode (voltage/current output) can be set for each channel. | |||||||||
| Digital input | Voltage output | 11bit binary + code 1bit | ||||||||
| Current output | 10-bit binary (unsigned) | |||||||||
| resolution | Voltage output | 5mV (10V x 1/2000) | ||||||||
| Current output | 20μA (20mA×1/1000) | |||||||||
| Overall accuracy | Voltage output | ±1% (±0.2V) for full scale 20V (load fluctuation is not included) |
||||||||
| Current output | ±1% (±0.2mA) for full scale 20mA | |||||||||
| D/A conversion time | 2.1ms/4 channels (regardless of the number of channels used) | |||||||||
| Insulation method | ・Analog output section and sequencer are isolated by photo coupler ・Analog output section and power supply are isolated by DC/DC converter ・Each channel is not isolated |
|||||||||
| I/O occupied points | 8 points (either input or output may be counted) | |||||||||
| Applicable sequencer | FX2N, FX3U, FX2NC, FX3UC <Connector type connector connection> FX2NC-CNV-IF is required to connect to FX2NC. To connect to FX3UC, FX2NC-CNV-IF or FX3UC-1PS-5V is required. |
|||||||||
| mass | 0.3 kg | |||||||||
| Power supply specifications | ||||||||||
| Power supply | 5V 30mA (Internal power supply from PLC) DC24V ±10% 200mA (External power supply) |
|||||||||
