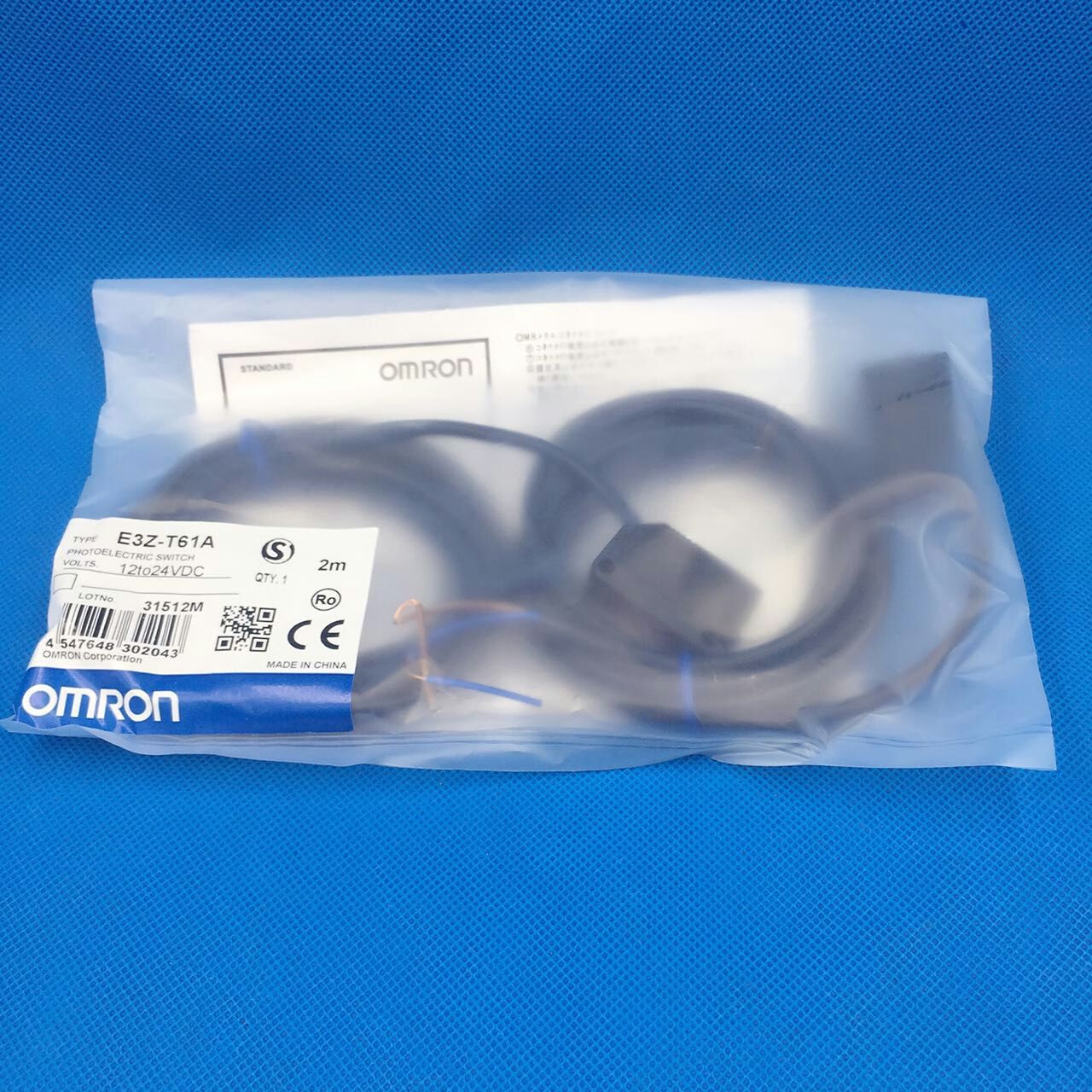

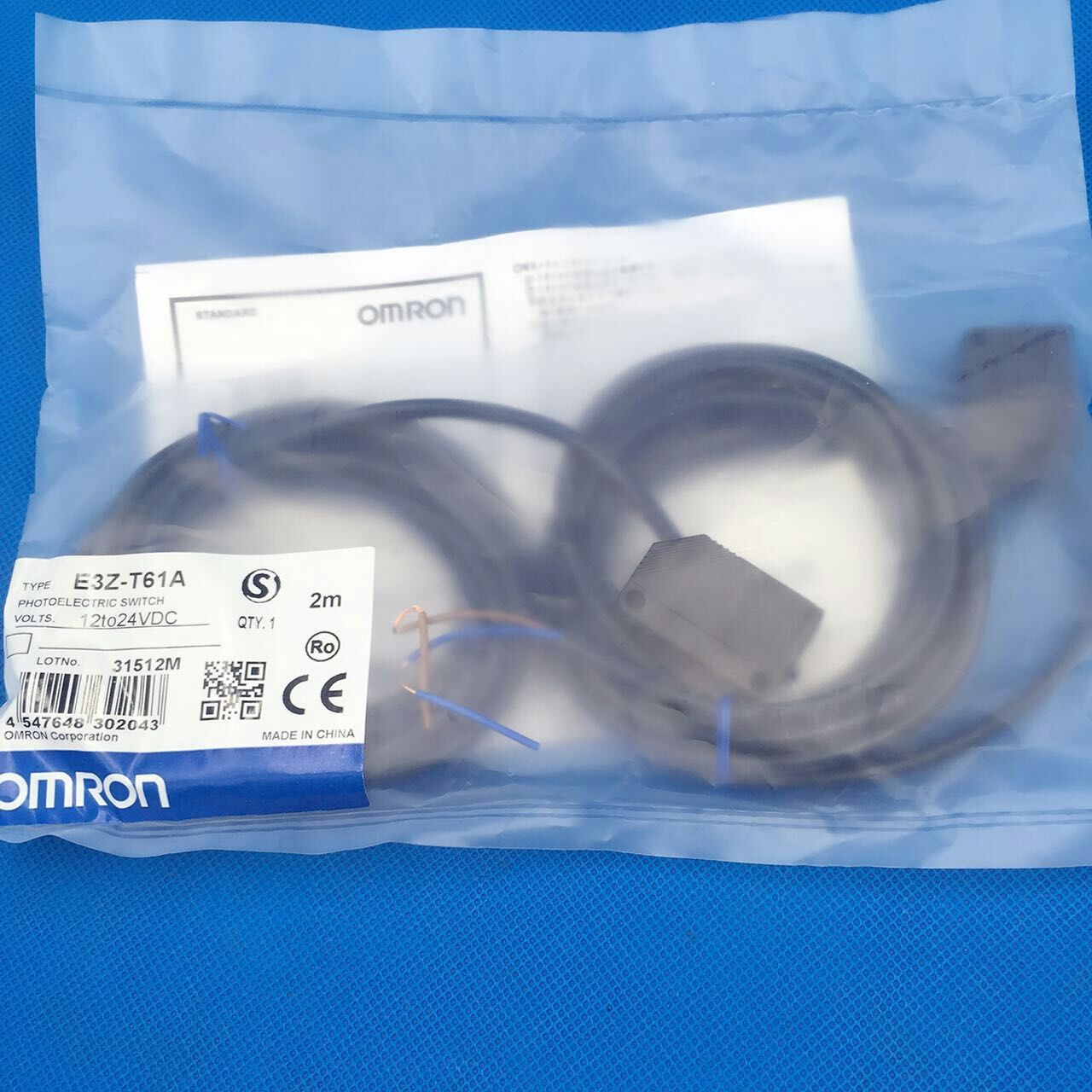

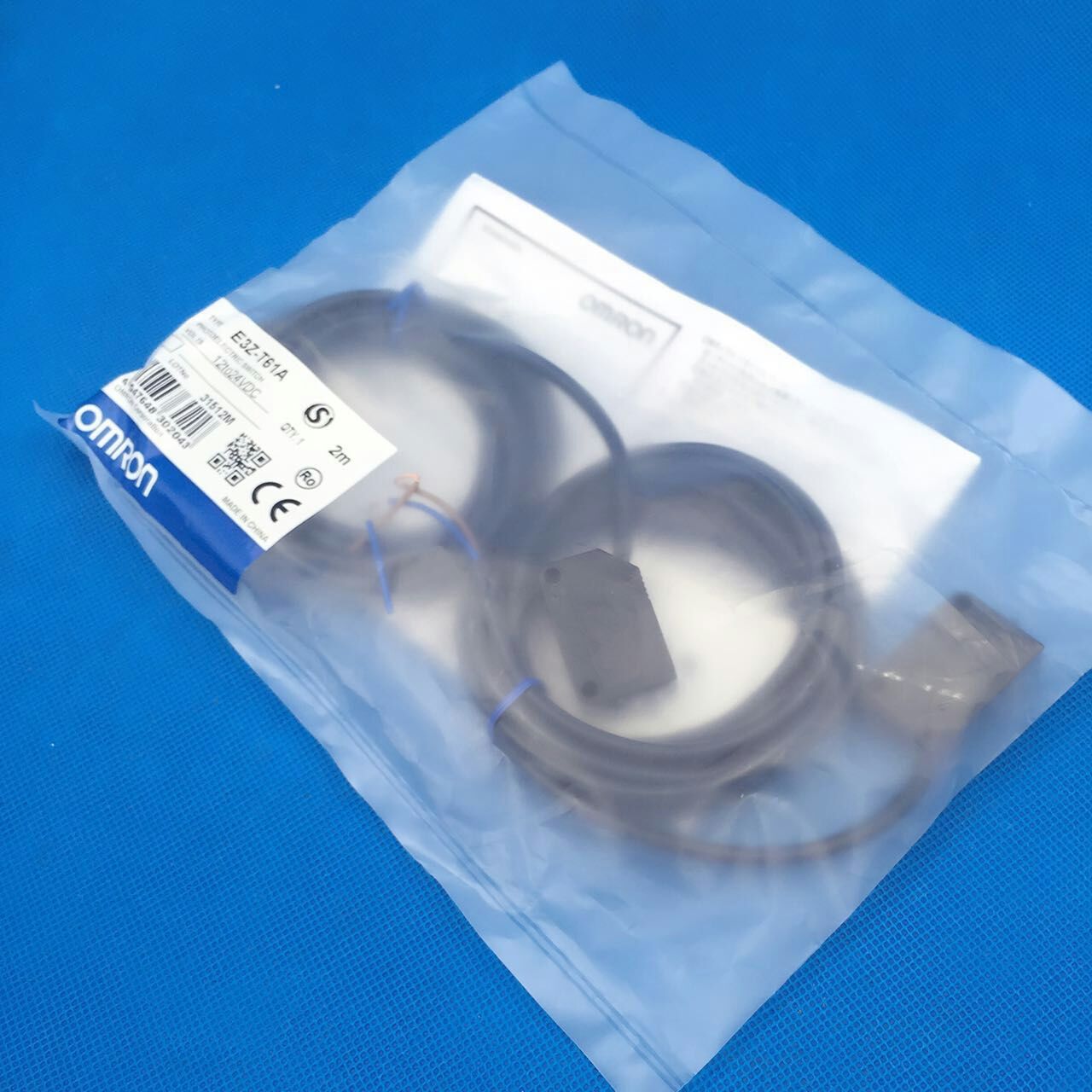

E3Z-T61A Omron photoelectric switch
| Shape | Square type |
|---|---|
| Sensing method | Through-beam |
| Sensing distance | 10 m |
| Standard sensing object | Opaque 12 mm dia. min. |
| Directional angle | Emitter: 3 to 15 DEG Receiver: 3 to 15 DEG |
| Light source | Red LED (Emission wave length: 660 nm) |
| Power supply voltage | 12 to 24 VDC ±10% (ripple (p-p) 10% max.) |
| Current consumption | Emitter: 15 mA max. Receiver: 20 mA max. |
| Control output | NPN open collector output 26.4 VDC max. Load current: 100 mA max. Residual voltage: 1 V max. (Load current Less than 10mA)/Residual voltage: 2 V max. (Load current: 10 to 100 mA) |
| Operation mode | Light-ON/Dark-ON selectable |
| Protective circuit | Output short-circuit protection Output reverse polarity protection Power supply reverse polarity protection |
| Response time | 1 ms max. (Operate or reset) |
| Sensitivity setting | Single-turn adjustment |
| Ambient illuminance | Incandescent lamp: 3000 lux max., Sunlight: 10000 lux max. |
| Ambient temperature (Operating) | -25 to 55 ℃ (with no icing or condensation) |
| Ambient temperature (Storage) | -40 to 70 ℃ (with no icing or condensation) |
| Ambient humidity | Operating: 35 to 85% Storage: 35 to 95% (with no icing or condensation) |
| Insulation resistance | 20 MΩ min. at 500 VDC |
| Dielectric strength | 1000 VAC at 50/60 Hz for 1 min |
| Vibration resistance | 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions |
| Shock resistance | 500 m/s**2 for 3 times each in X, Y, and Z directions |
| Degree of protection | IEC: IP67 |
| Connection method | Pre-wired models (Cable length: 2 m) |
| Indicator | Operation indicator (orange), Stability indicator (green), Power indicator (orange) |
| Weight (packed state) | Approx. 120 g |
| Material | Case: PBT Lens: Denatured Polyarylate |
| Accessories | Instruction manual |
