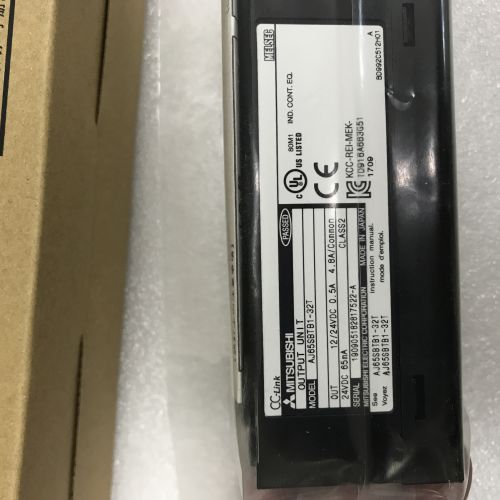

AJ65SBTB1-32T Mitsubishi PLC
| Output format | Transistor output (sink type) | |
| Output points | 32 points | |
| Rated load voltage | DC12 / 24V | |
| Operating load voltage range | DC 10.2 to 26.4 V (within 5% ripple rate) | |
| Maximum load current | 0.5A / 1 point, 4.8A / 1 common | |
| Maximum inrush current | 1.0A 10ms or less | |
| OFF current leakage current | 0.25 mA or less | |
| Maximum voltage drop when ON | DC 0.3 V or less (TYP.) 0.5 A, DC 0.6 V or less (MAX.) 0.5 A | |
| Output response time | OFF → ON | 0.5 ms or less |
| ON → OFF | 1.5 ms or less (resistive load) | |
| Surge killer | Zener diode | |
| Protection function | Over load protection function, over voltage protection function, over temperature protection function | |
| Output unit external power supply | Voltage | DC 10.2 to 26.4 V (within 5% ripple rate) |
| Current | 50mA or less (TYP. DC24V, per common) Does not include external load current | |
| Output common method | 32 points 1 common (Terminal trapezoidal 1-wire type) | |
| Output isolation method | Photocoupler isolation | |
| Dielectric breakdown voltage | Between DC external terminal block and ground: AC500V 1 minute | |
| Insulation resistance | Between DC external terminal block and ground: 10 MΩ or more with DC 500 V insulation resistance tester | |
| Protection grade | IP2X | |
| Station type | Remote I / O station | |
| Number of occupied stations | 1 station | |
| Unit power supply | Voltage | DC 20.4 to 26.4 V (within 5% ripple rate) |
| Current | 65 mA or less (24 V DC, all points on) | |
| External wiring connection method | Communication unit, unit power supply unit: 7 points 2-piece terminal block (M3 screw) input / output power supply unit, input / output unit: 34 points direct mounting terminal block (M3 screw) |
|
| External dimensions | Height (H) | 50 mm |
| Width (W) | 179 mm | |
| Depth (D) | 40 mm | |
| mass | 0.25 kg | |
